PRODUCT OVERVIEW

Introduction

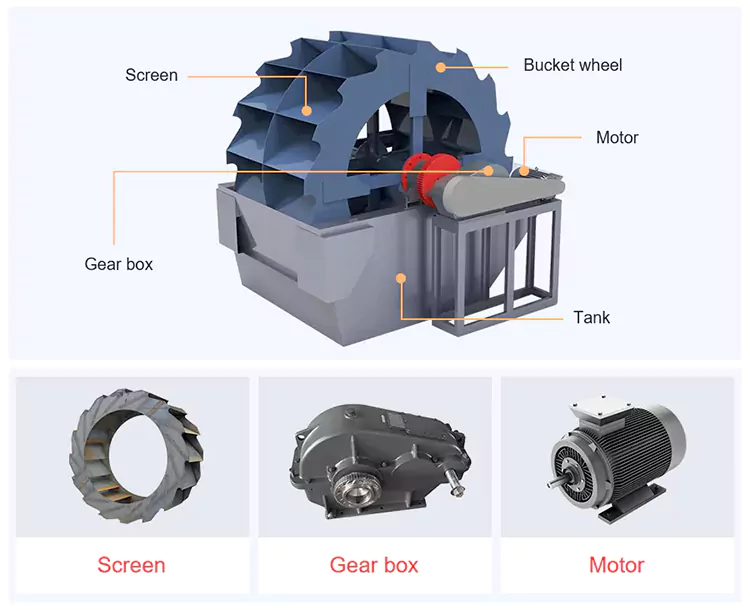

Bucket wheel sand washer is for cleaning sand and other fine materials. It's applied in sand-making plants to wash out solids and powders from sand. Its main function is to remove impurities like clay, silt, dust and other unwanted particles from sand to obtain cleaner products. However, compared to spiral sand washing machines, bucket wheel sand washers have relatively weaker cleaning capabilities and are more suitable for use in small and medium-sized sand production lines. A bucket wheel sand washer typically consists of main body, bucket wheel, screen, tank, gear box, motor, reducer, and main shaft.

Wear Parts Supply

High-Manganese Steel Jaw Plate

Adopt Mn13Cr2, Mn18Cr2 materials to ensure high wear resistance and longer service life for crushing hard rocks.

Durable Toggle Plate

Acts as a safety device, protecting the machine from damage when non-crushable materials enter the chamber.

Protective Lining Board

Protects the machine frame from wear and tear, easy to replace and maintain, reducing downtime.

Fast Spare Parts Supply

We keep sufficient stock of standard spare parts to ensure quick delivery and minimize your production interruption.

Why Choose Us

1. Durable, low energy consumption, low operating costs.
2. Water consumption is relatively low, saving water resources.
3. Less wearing parts, no other wearing parts except the screen.
4. Loss of medium and fine sand and powder is much less during operation.
5. The drive system is isolated from water and can achieve simple maintenance.

Technical Specifications

Technical parameters:

Model	Diameter of the wheel bucket (mm)	Width of the wheel bucket (mm)	Speed of rotation (r/min)	Max. feeding size (mm)	Processing capacity (t/h)	Motor power (kW)	Overall dimensions (mm)
XS-2210	2200	1000	2.5	≤10	15-30	4	318019552350
XS-2610	2600	1000	2.5	≤10	20-50	5.5	351520702672
XS-2816	2800	1600	1.2	≤10	50-80	11	396430142895
XS-3016	3000	1600	1.2	≤10	70-110	11	416934563055
XS-3218	3200	1800	1.17	≤10	80-120	15	434027603349
XS-3624	3600	2400	1	≤10	110-200	18.5	458032183600
